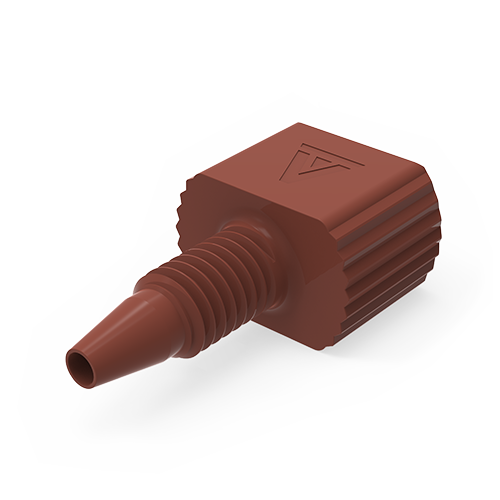

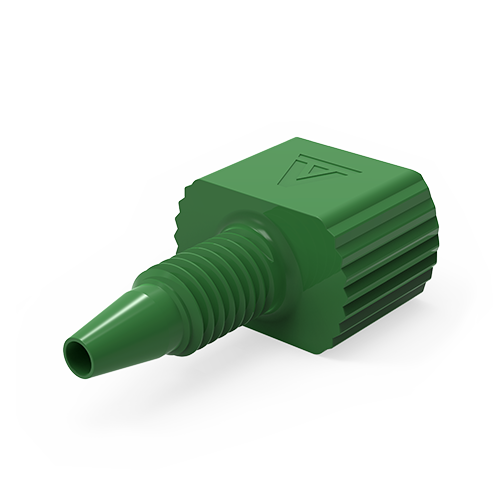

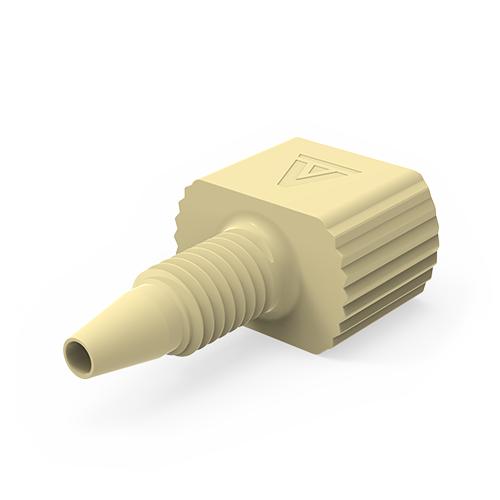

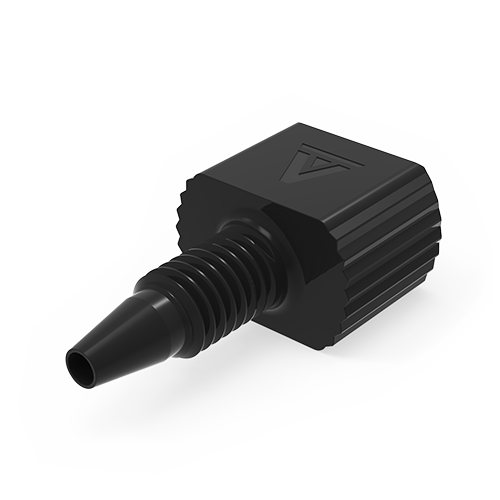

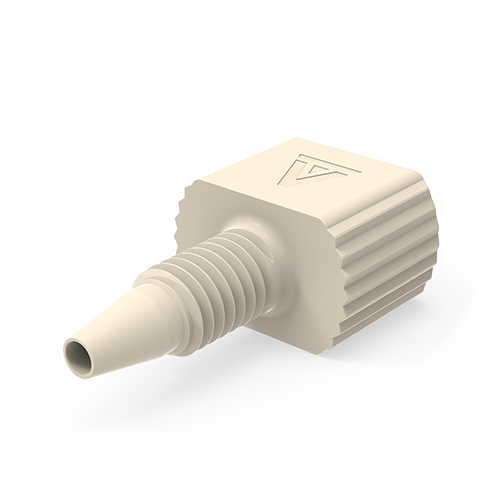

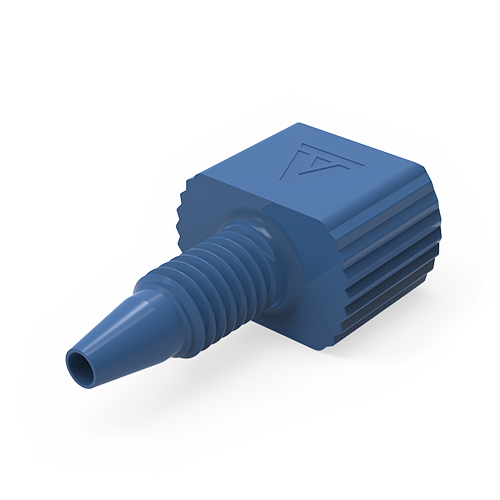

1/16" PEEK One-Piece Fingertight Fittings - Color-Coded - 10-32 (5 pack)
Part Number #JR-55020-5
Our PEEK fingertight fittings are available in six colors, for easy identification of tubing lines. They are rated to 350 bar (5,000 psi) and can be used in virtually any type of 10-32 thread HPLC fitting detail on the market. They offer excellent chemical and mechanical properties, molded as one-piece (no ferrule required) out of biocompatible PEEK. They are fingertight up to 350 bar (5,000 psi).
NOTE: Coloration pigments are carefully chosen to contain no heavy metals or hazardous chemicals.
For more information on PEEK, refer to Properties of Polymers and Chemical Resistance of Materials
Specs
For 1/16” OD tubing
Material: Polyetheretherketone (PEEK)
Pressure rating: 180 bar (2,600 psi)
(Varies with tubing material and ID)
Threads: 10-32
Tolerance: Tolerance: ±0.05 mm (.002")
See Also
PVDF Fingertight Fitting for medium pressure applications (up to 180 bar)
