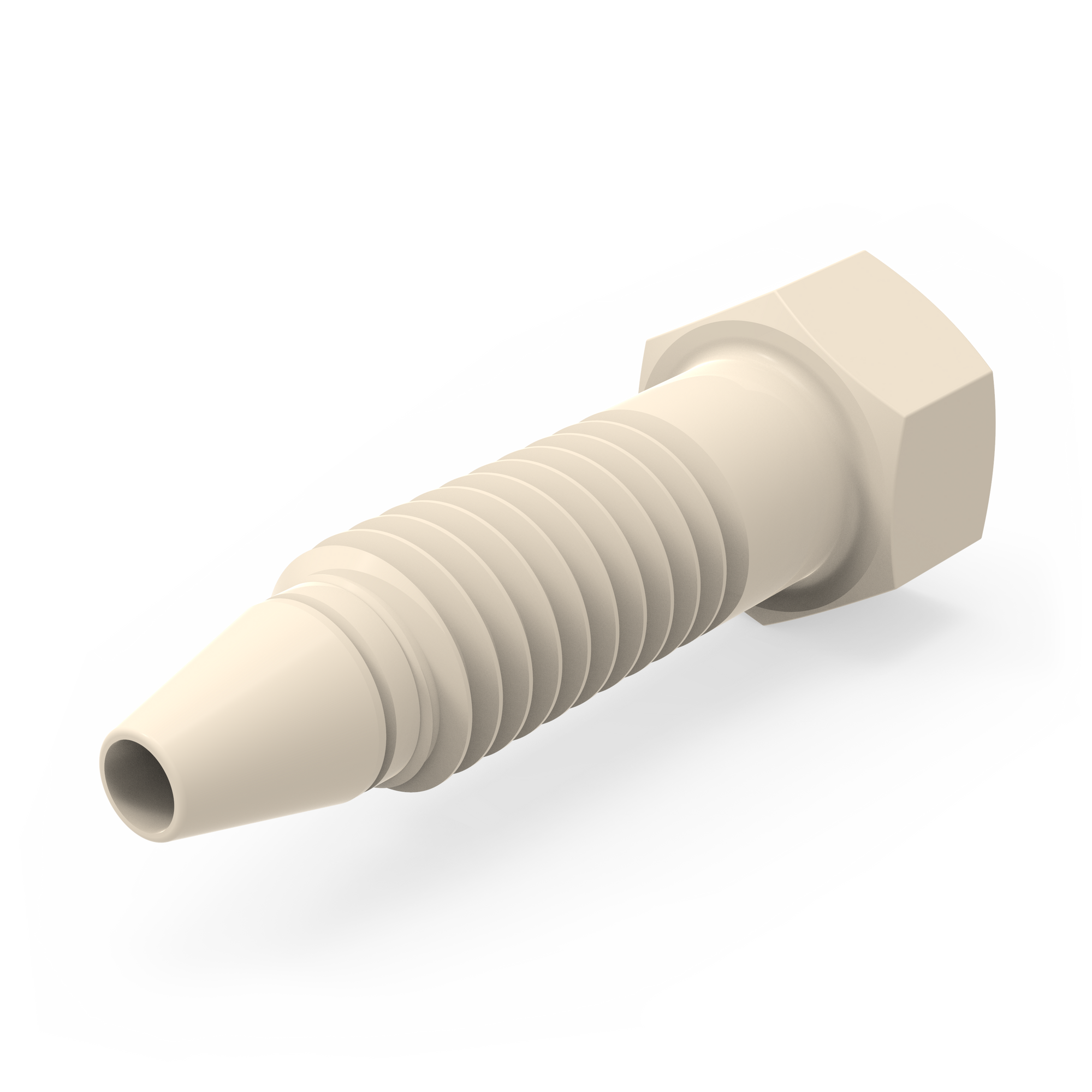

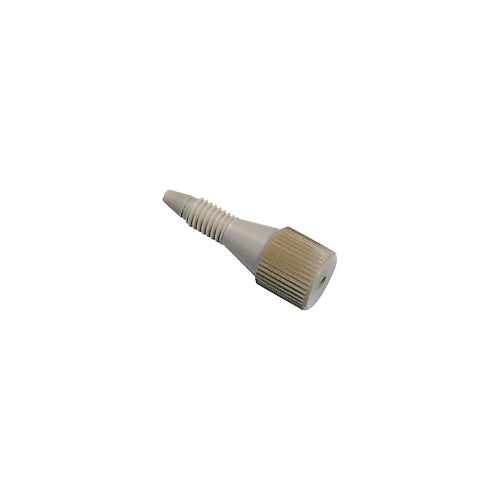

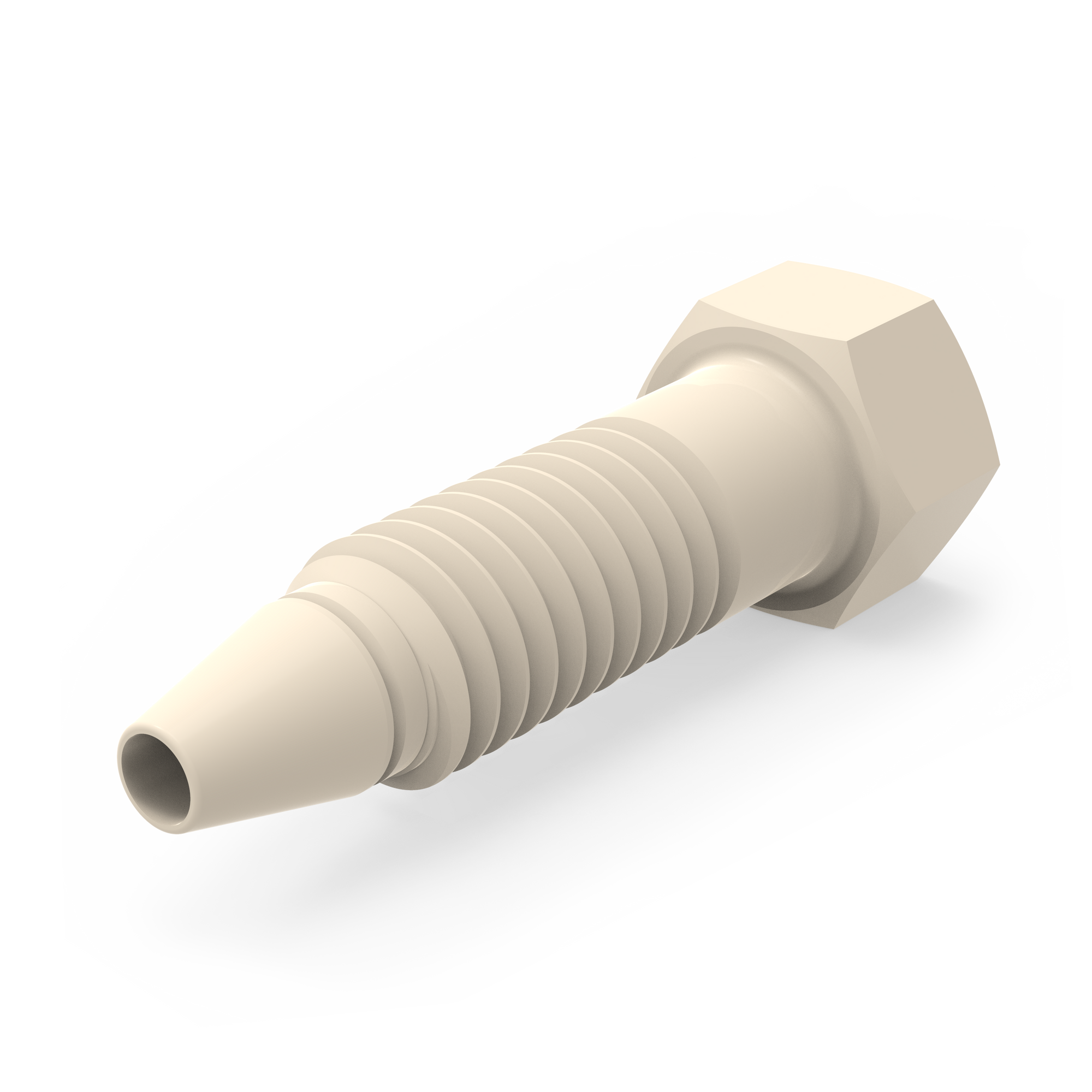

Cheminert® PEEK No-Twist "One-Piece" Fittings
Part Number #JR-LZNF1KF
These biocompatible no-twist fittings offer the convenience of a one-piece fitting while solving a problem inherent to such designs. In other one-piece designs, the ferrule rotates against the fitting detail, creating particulates. The no-twist design has a separate ferrule that snaps into the nut, so it's attached but still free to avoid rotation during tightening.
Since the ferrule is not machined onto the nut, it can be made from a different material. We offer several PEEK nuts, with ferrules of PEEK, CTFE, or glass-filled PEEK.
For more information on PEEK or CTFE, refer to Properties of Polymers and Chemical Resistance of Materials
Specifications
For 1/16” OD tubing
Material: PEEK nut, ferrule of PEEK, CTFE, or glass-filled PEEK
Thread: 10-32
Pressure rating:350 bar (5,000 psi)
(Varies with tubing material and ID)
