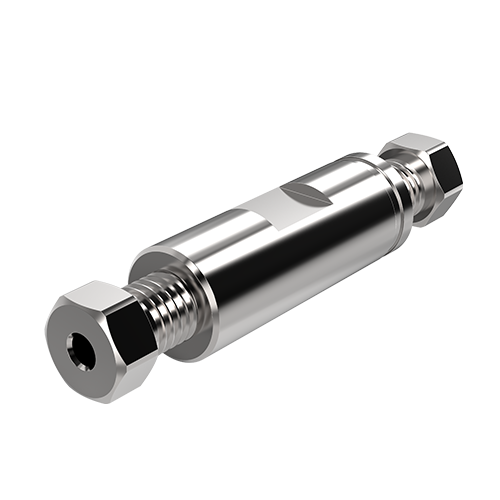

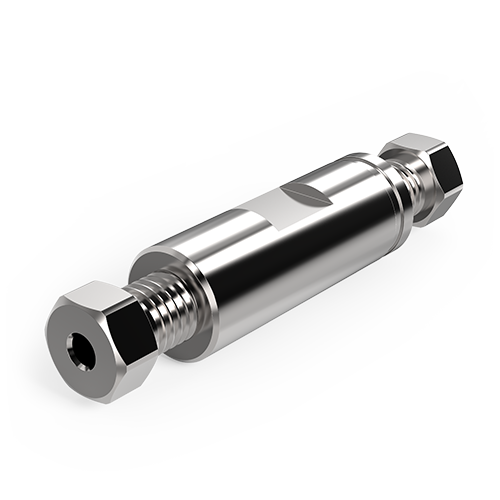

Imperial to Metric UHPLC Stainless Steel Reducing Union, Complete

Imperial to Metric UHPLC Stainless Steel Reducing Union, Complete

Name: Imperial to Metric UHPLC Stainless Steel Reducing Union, Complete
Brand: VICI Jour
SKU: JR-082
Price: 46.4 USD
Availability: InStock

Part Number #JR-082

$46.40

Reduction

1/16" to 2.0mm, 10-32
1/8" to 3.0mm, 5/16"-24
1/32" to 1.0mm, 6-40 – 10-32

Bore

0.75 mm
0.25 mm

Description
Specifications
See Also

Description

These new reducing unions can connect metric tubing to imperial fittings, valves, and chromatographic systems. The unions are manufactured from Type 303 stainless steel. For easy identification, the metric end is marked by a groove. Two nuts and ferrules ship with each reducing union.

Specifications

TUBE REDUCING ODs

1/32" to 1.0 mm

1/16" to 2.0 mm

1/8" to 3.0 mm

Material:

Materials
Body	Type 303 SS
Nuts	Type 303 SS
Ferrules	Type 316 SS

Pressure rating:1,375 bar (20,000 psi)
(Varies with tubing material and ID)

For more information on Stainless Steel, refer to Properties of Metals

Spare Parts

Materials

Body

Type 303 SS

Nuts

Type 303 SS

Ferrules

Type 316 SS
