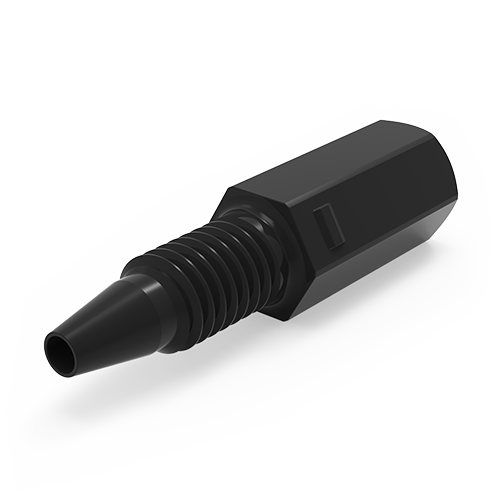

PPS One-Piece Hex-Head Fittings - Black, 10-32, Pack of 5
PPS One-Piece Hex-Head Fittings - Black, 10-32, Pack of 5
PPS One-Piece Hex-Head Fittings - Black, 10-32, Pack of 5
PPS One-Piece Hex-Head Fittings - Black, 10-32, Pack of 5

PPS One-Piece Hex-Head Fittings - Black, 10-32, Pack of 5

Part Number #JR-58000-5

$17.25 Sale • Save

PPS (Polyphenylene Sulfide) offers an economically priced alternative to PEEK with excellent chemical and mechanical properties. Hex-head fittings are one-piece (no ferrule required), with a slim design that provides excellent chemical and pressure resistance. They can be fingertight with a Color-Sleeve Adapter.

For more information on PPS, refer to Properties of Polymers and Chemical Resistance of Materials



Specifications

For 1/16” OD tubing

Material: Black Polyphenylene Sulfide (PPS)

Pressure rating:350 bar (5,000 psi)

(Varies with tubing material and ID)

Threads: 10-32

Tolerance:Tolerance: ±0.05 mm (.002")



Product Suggestions:

1/16" OD tubing for high-pressure applications

Color-Sleeve adapters

Spare Parts
