Part Number #C360UPK4

$72.30 Sale • Save
Type
Bore

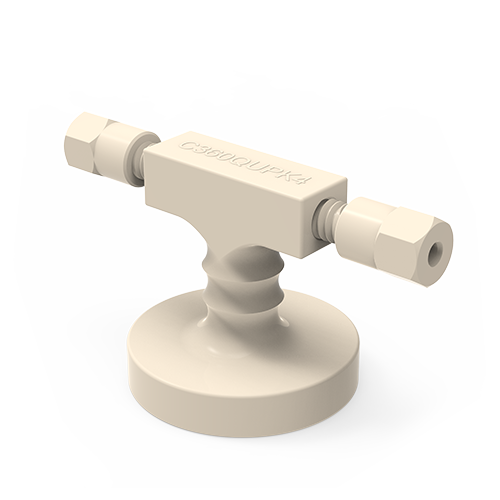

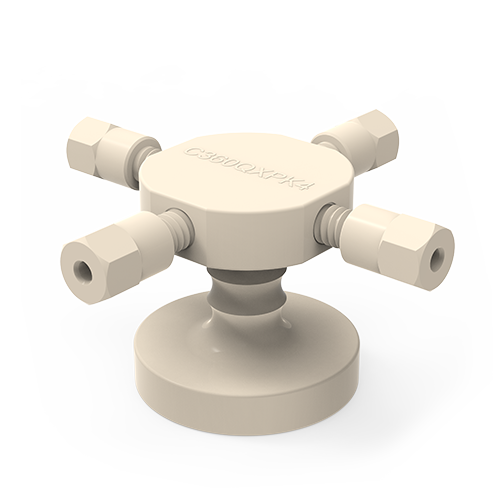

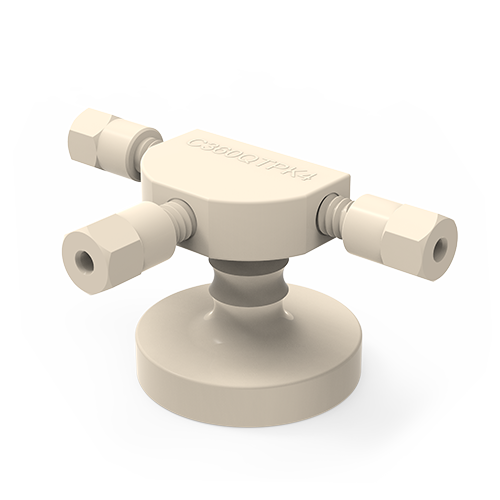

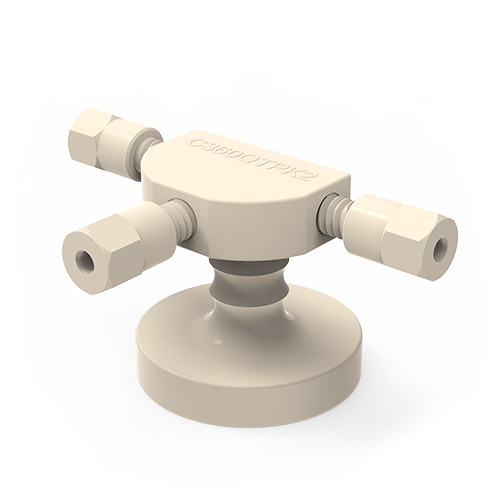

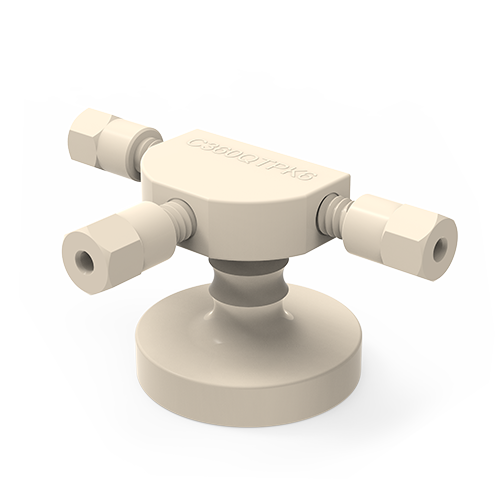

Nanovolume 360 µm fittings are made from premium-grade natural PEEK. They are intended for use with PEEK or fused silica tubing at pressures up to 10,000 psi/689.5 bar (or the maximum pressure for which the tubing is rated, whichever is lower). Quick-mount unions, tees, and crosses have an integral base with double-stick tape to secure fittings to a surface.

TECH TIP

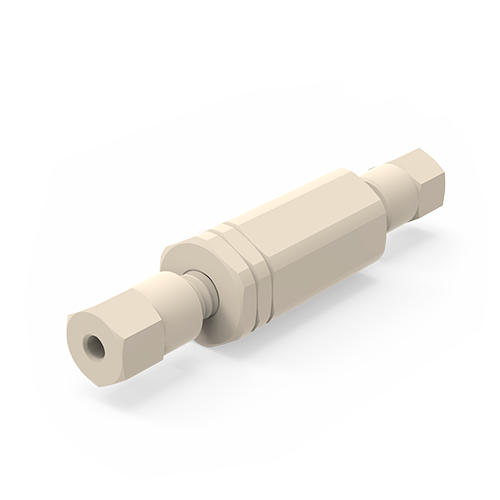

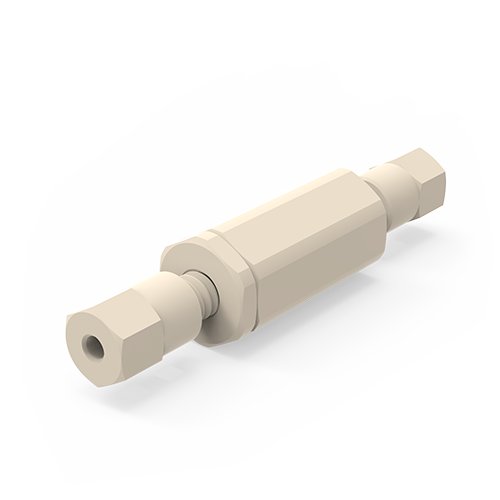

Grooves on the fitting body indicate the bore size (PEEK union shown):

Grooves Indicate Size

For more information on PEEK, refer to Properties of Polymers


Specifications

For 360 µm PEEK or fused silica tubing

Material: PEEK

Pressure rating: ≥689.5 bar (10,000 psi)

(Varies with tubing material and ID)

Spare Parts
