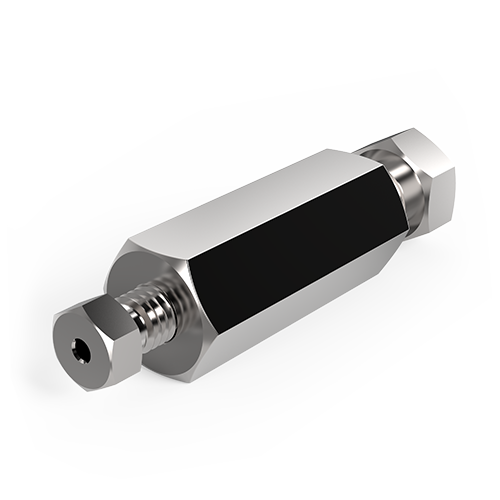

Stainless Steel Reducing Union, Complete

Part Number #JR-ZRU21

$29.90 Sale Save
Reduction
Bore

VICI Jour reducing unions join 1/16" OD tubing to ⅛” OD tubing. They are precision machined with a focus on the concentricity of the bore (0.75 mm) and on surface finish to ensure a completely leak-free connection.

The unions have internal threads, which we recommend for most applications. For high-performance instrumentation use, internal threads make stronger connections and internal fitting details provide the lowest dead volume.

Two nuts and ferrules ship with each reducing union.

Specifications

For joining 1/16" and ⅛” OD tubing

Bore: 0.75 mm

Material:

Materials
Body Type 316 SS
Nuts Type 303 SS
Ferrules Type 316 SS

Pressure rating:1,375 bar (20,000 psi)
(Varies with tubing material and ID)


For more information on Stainless Steel, refer to Properties of Metals
